In this lesson we will set start and end time, select simulation outputs and run a simulation.

Simulation settings

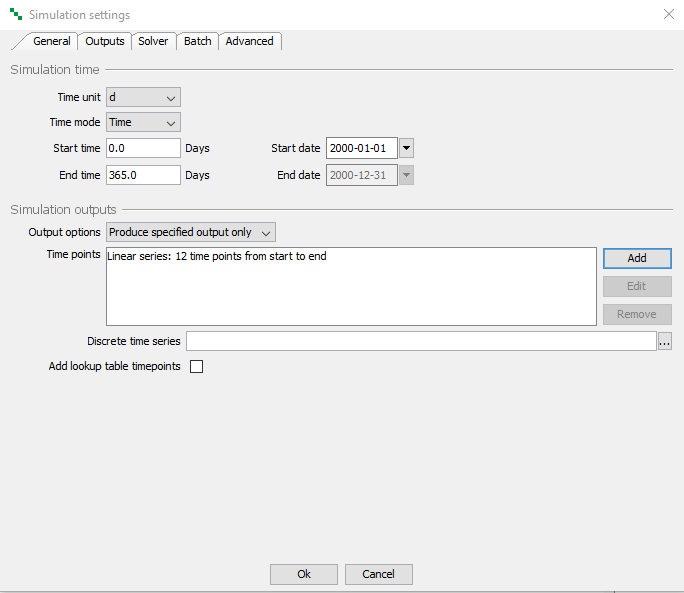

1. Click the button in the toolbar or select Simulation | Simulation Settings from the Menu bar.
2. Make sure that the General tab is selected. Set the Time unit to Days and the End time to 365.
3. In order to get output for months only, select the “Produce specified output only” from the Output options.
4. In the Time points section, click on the Add button to the right. In the Add window choose Type “Linear”, set N to 12, and click Ok to add.

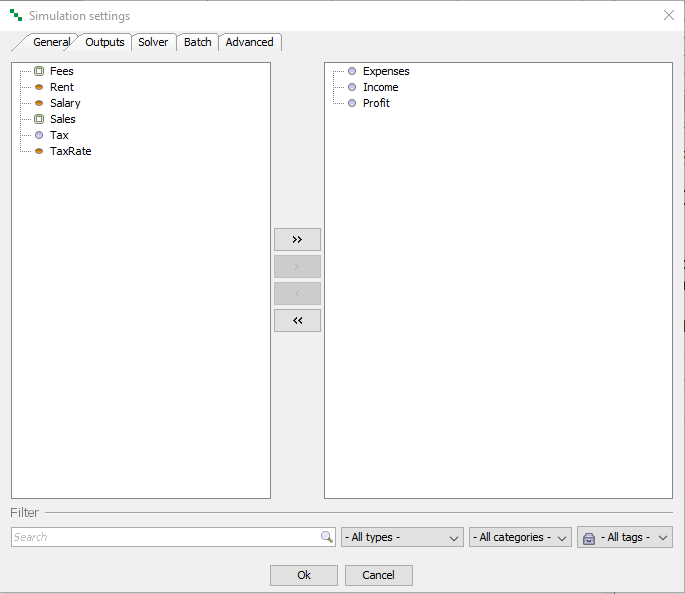

5. Now select the Outputs tab of the Simulation Settings. In this page you specify which outputs you want to save from the simulation. Outputs are selected/deselected by using the arrow buttons.
6. Make sure that you only have Expenses, Income and Profit as selected outputs in the right hand window.
7. Click Ok to close the window.

Running a simulation

1. Windows that are useful for running simulations and inspecting results can be opened by clicking the Simulation button on the toolbar.
2. Click the button on the toolbar to start the simulation.

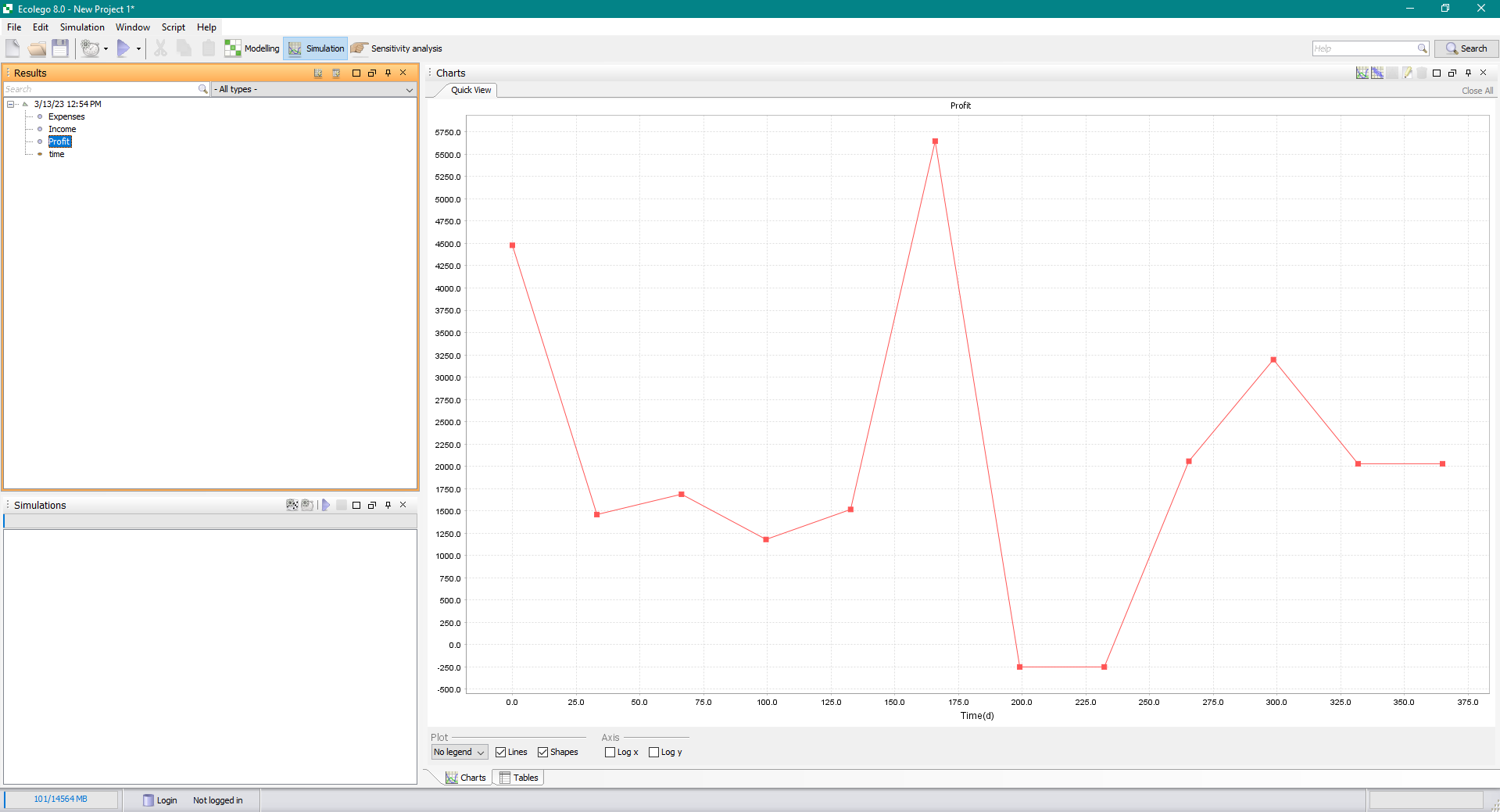

3. When the simulation has finished, the Results window should list the blocks that you selected to be simulation outputs above. Select which outputs to display in the Charts window by selecting them in the Results window.
